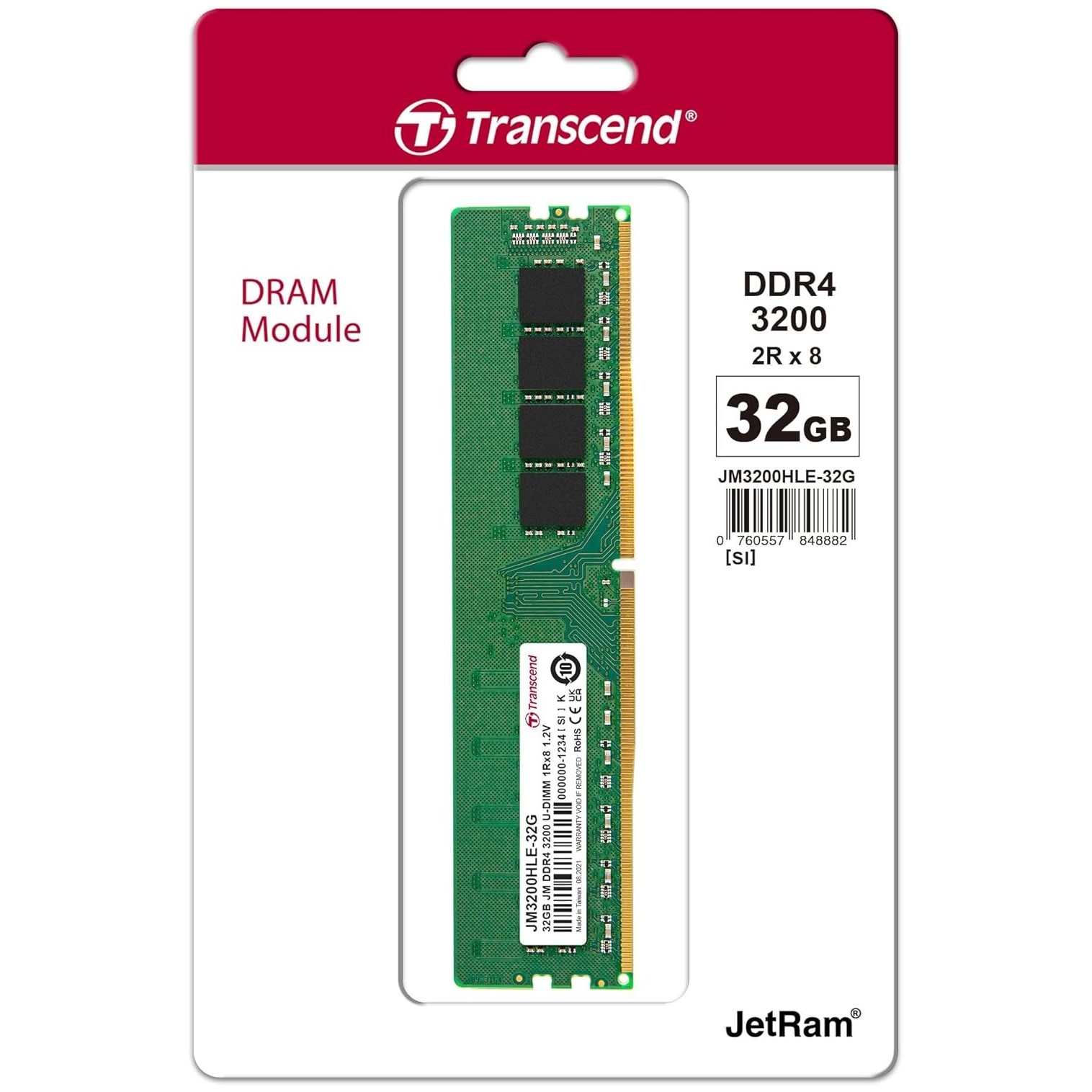

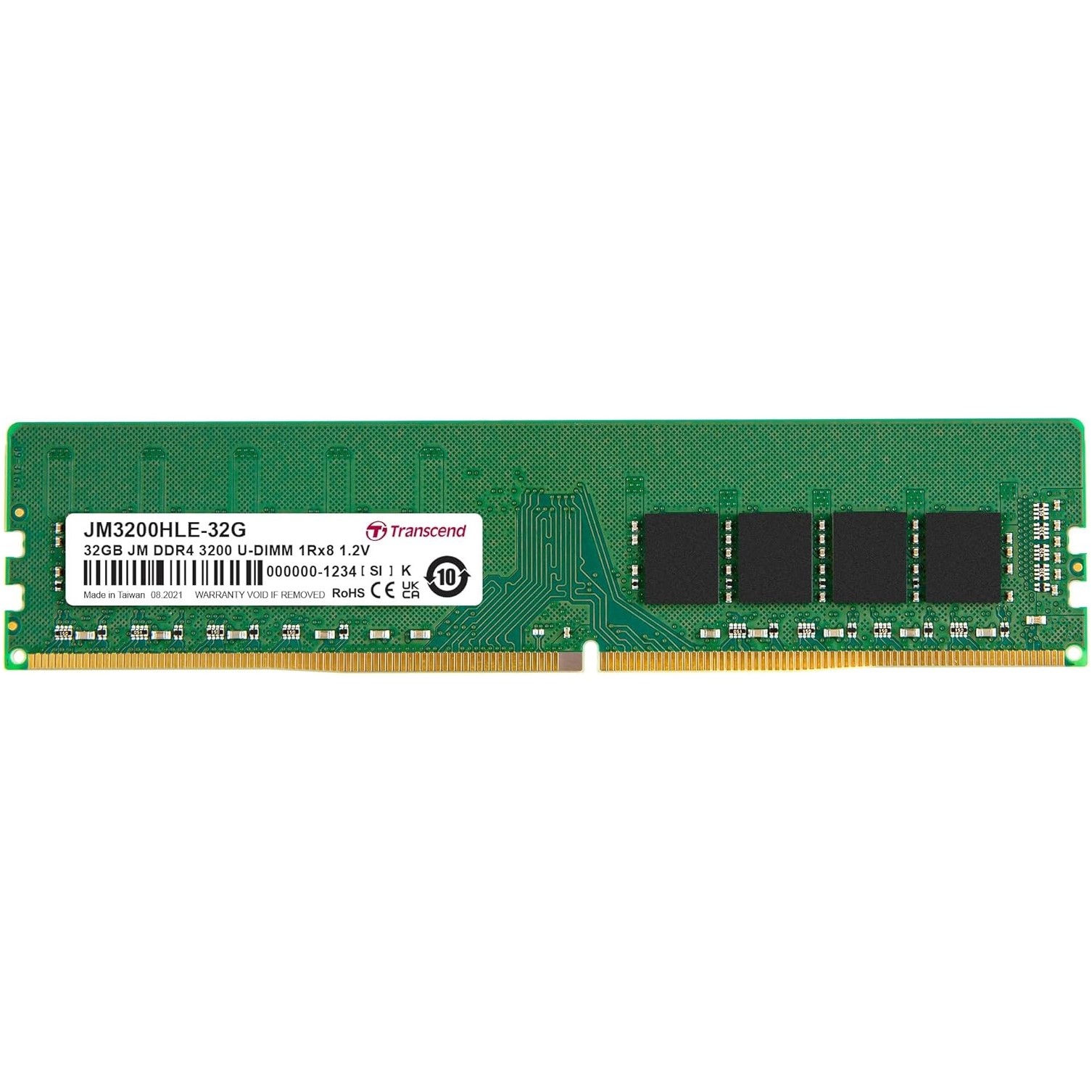

Transcend 32GB 3200MHZ DESKTOP DDR4

DDR4-3200 Unbuffered Long-DIMM

JM3200HLE-32G

Transcend’s JetRam memory modules are manufactured with true ETT grade, brand-name DRAM chips that have passed Transcend’s strict screening process and testing. The modules provide excellent compatibility and fully-tested reliability, which is ideal for PC upgrade at an attractive price. Each memory module is rated at 3200 MT/s to greatly increase data transmission efficiency by higher bandwidth of up to 25.6GB/s. Operated at a nominal voltage of just 1.2V, Transcend’s DDR4 U-DIMM JetRam memory ensures that both operating temperature and electrical load on the memory controller can be reduced in order to save up to 40% of energy compared to standard DDR3 modules offering 1.5V.

Specifications

DRAM Module

• RAM Type DDR4
• DIMM Type Unbuffered Long-DIMM
• Speed 3200
• CAS Latency CL22
• Capacity 32GB
• Rank x Org. 2Rx8
• Component Composition 2Gx8
• Voltage 1.2V
• Pin Count 288 pin
• PCB Height 1.23 inches

Operating Environment

• Operating Temperature:   0°C (32°F) ~ 85°C (185°F)
